ERIC-A: Automatic Delivery Robot

TL;DR: ERIC-A is an indoor autonomous robot that receives delivery orders from the web, navigates to destinations, detects people in its path, and returns to its station.

Project demonstration video.

ERIC-A robot hardware design — Robot chassis and assembled delivery platform.

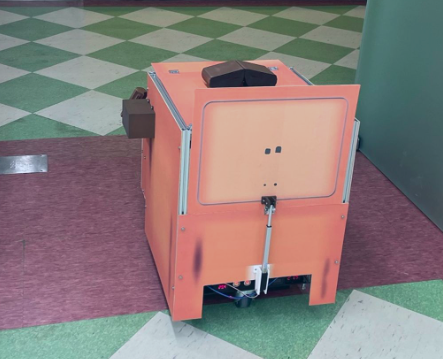

ERIC-A robot assembled hardware — Robot chassis and assembled delivery platform.

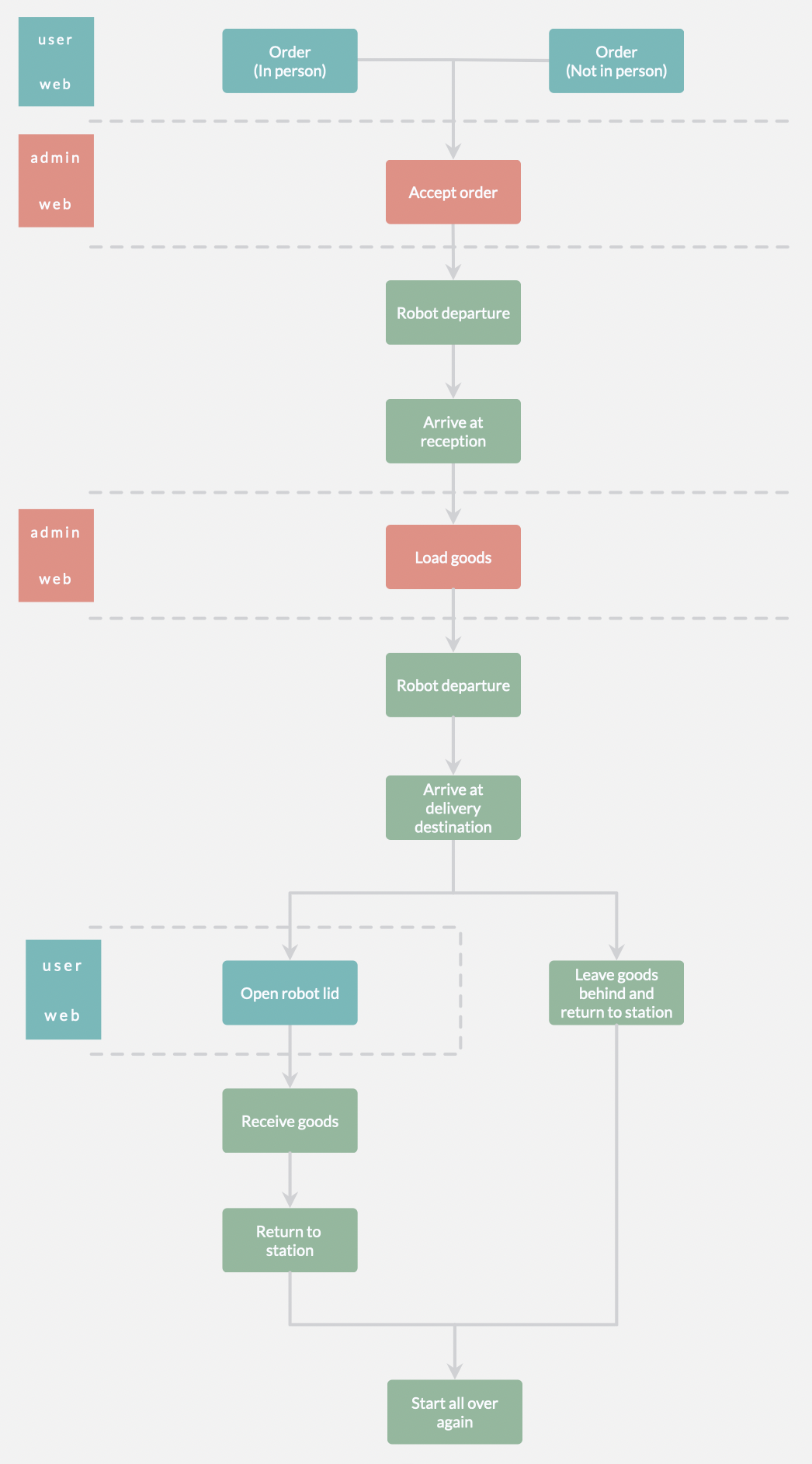

ERIC-A delivery workflow from order intake to robot return — Delivery workflow from user order to station return.

ERIC-A combines a ROS-based mobile robot stack, indoor localization, path planning, YOLO vision, voice guidance, and a web service for delivery request management. A user submits an order, an administrator selects deliveries, and the robot travels to the selected destination while announcing its presence around people.

System Highlights

Autonomous navigation

ROS launch files for SLAM, localization, move_base, and robot bringup.

Human-aware delivery

YOLO-based vision support for detecting people and triggering voice alerts.

Order-to-robot flow

Web ordering and admin controls connect delivery requests to robot dispatch.

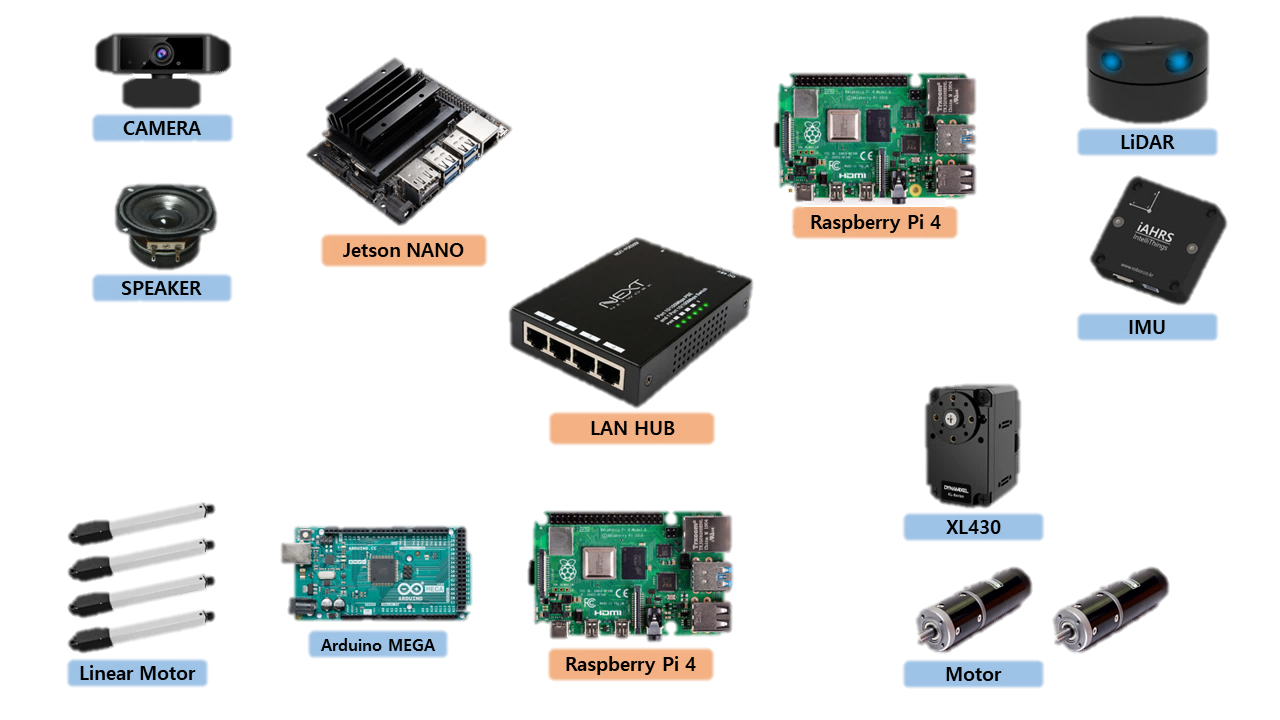

Hardware integration

Motor, lidar, IMU, servo, and robot description packages share one workspace.

Architecture

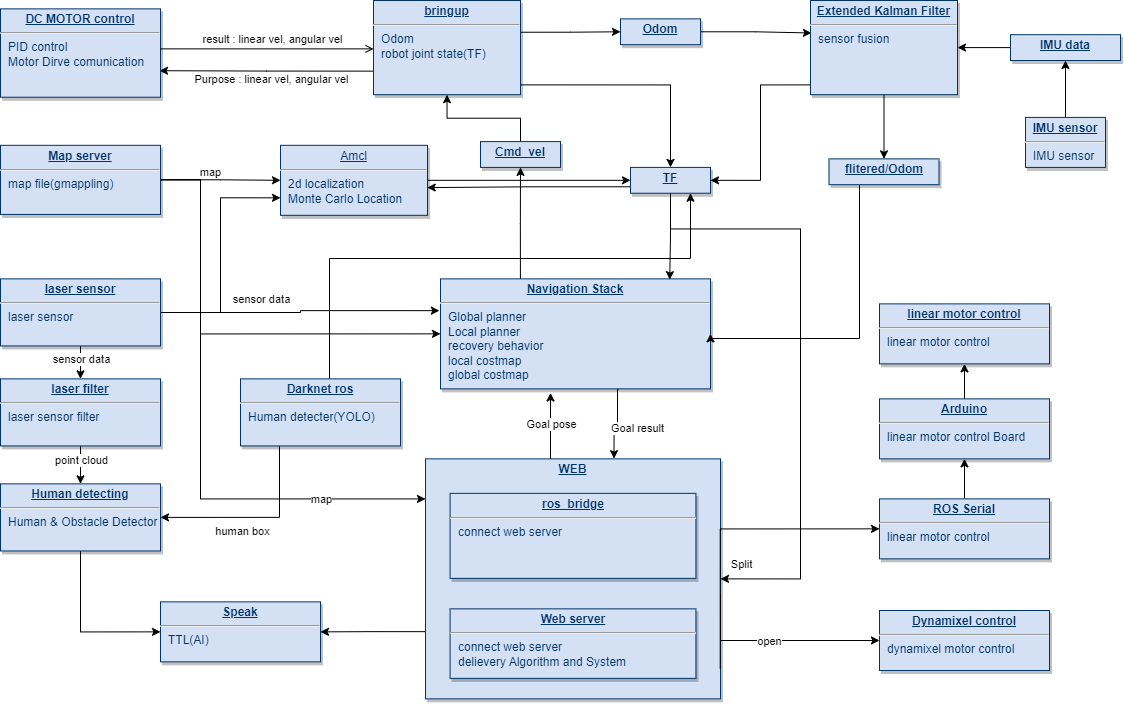

ERIC-A robot system architecture — Robot system architecture

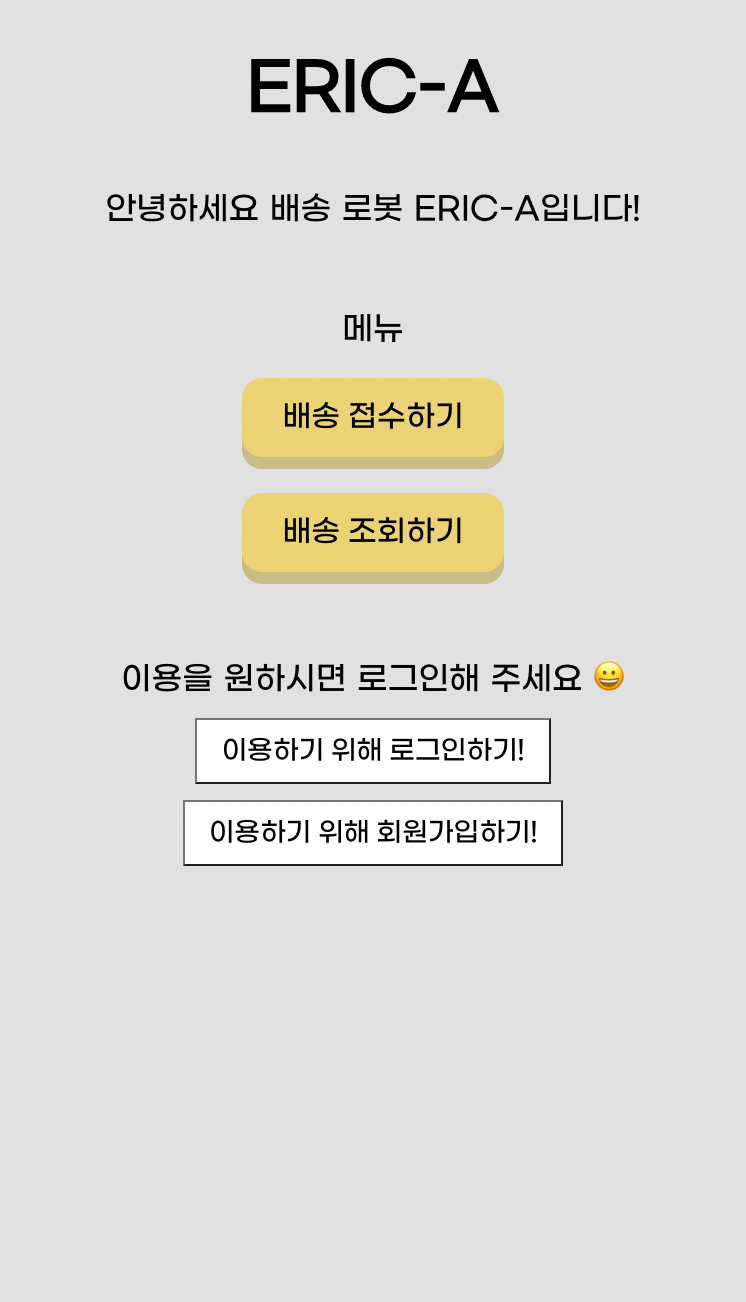

Web Interface

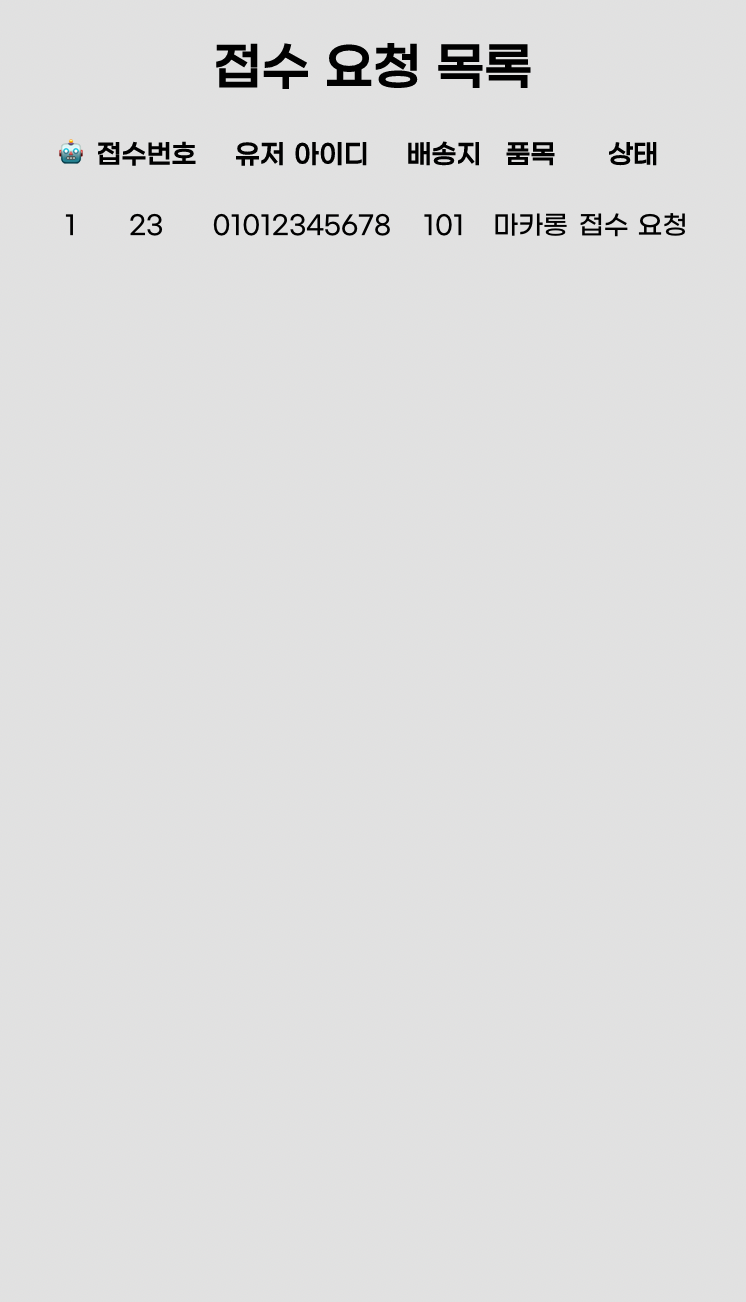

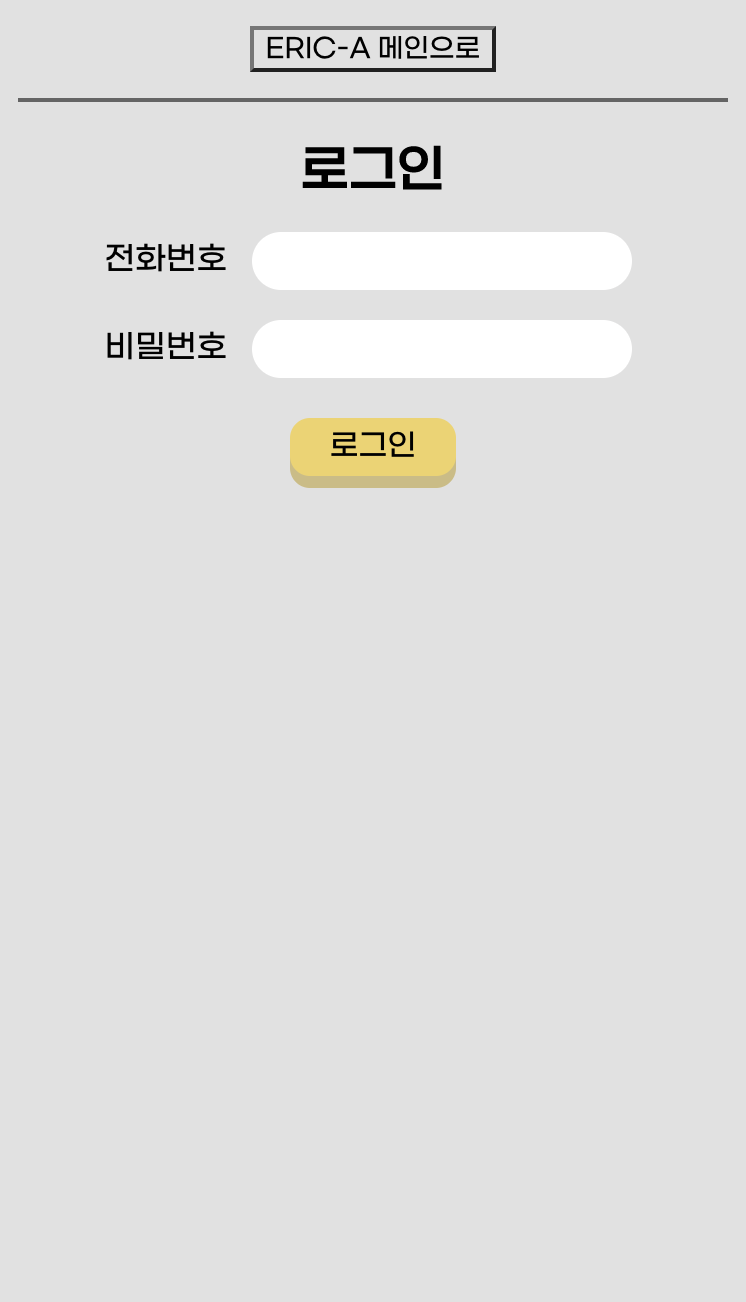

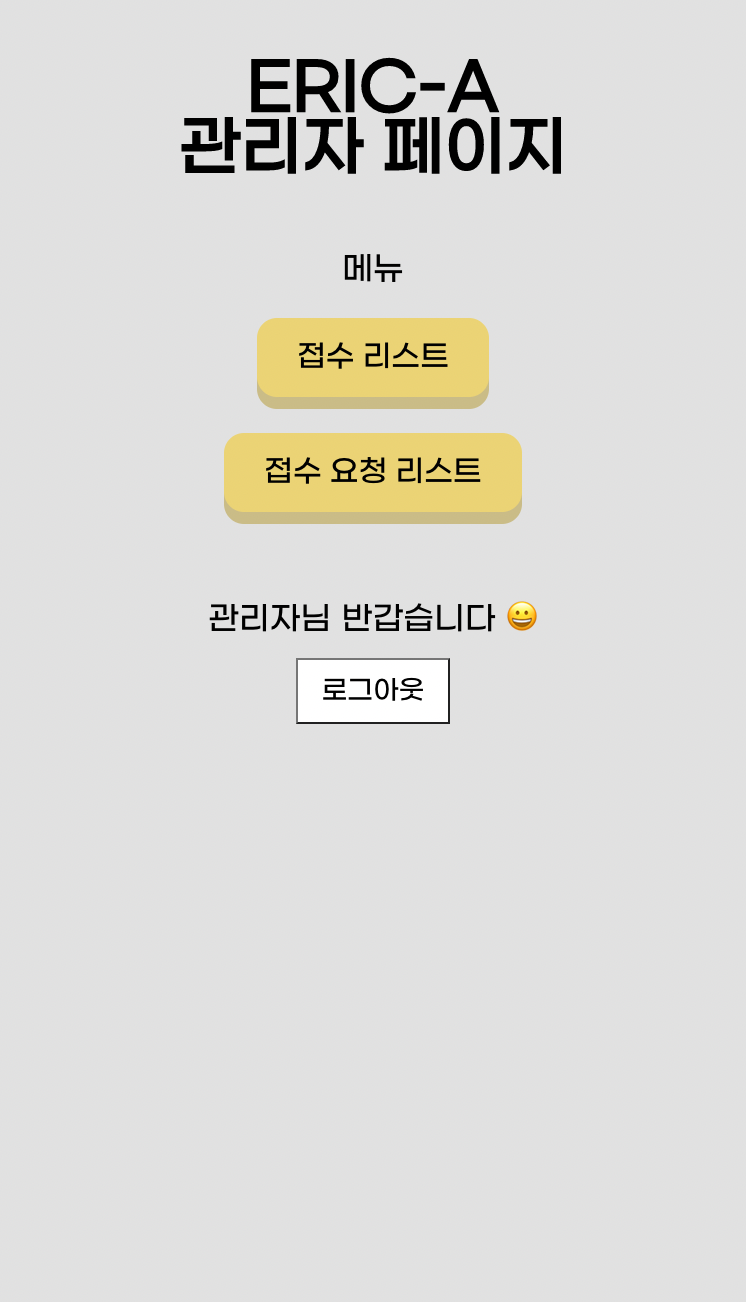

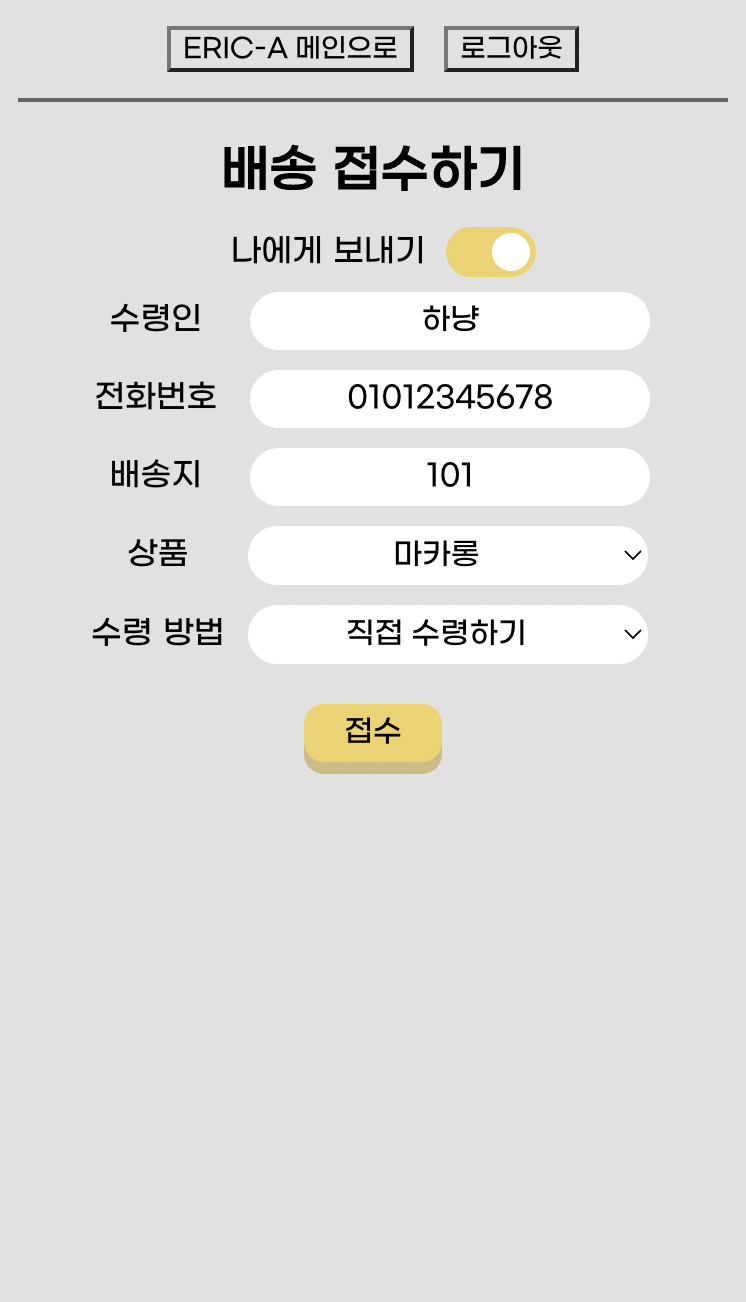

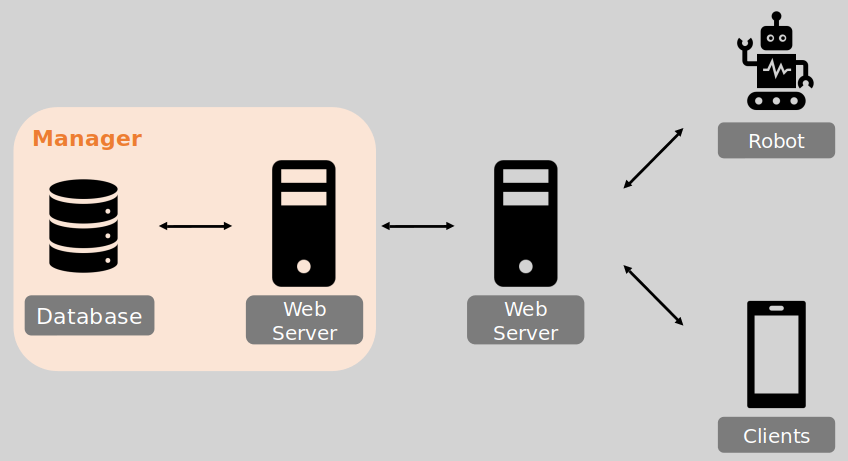

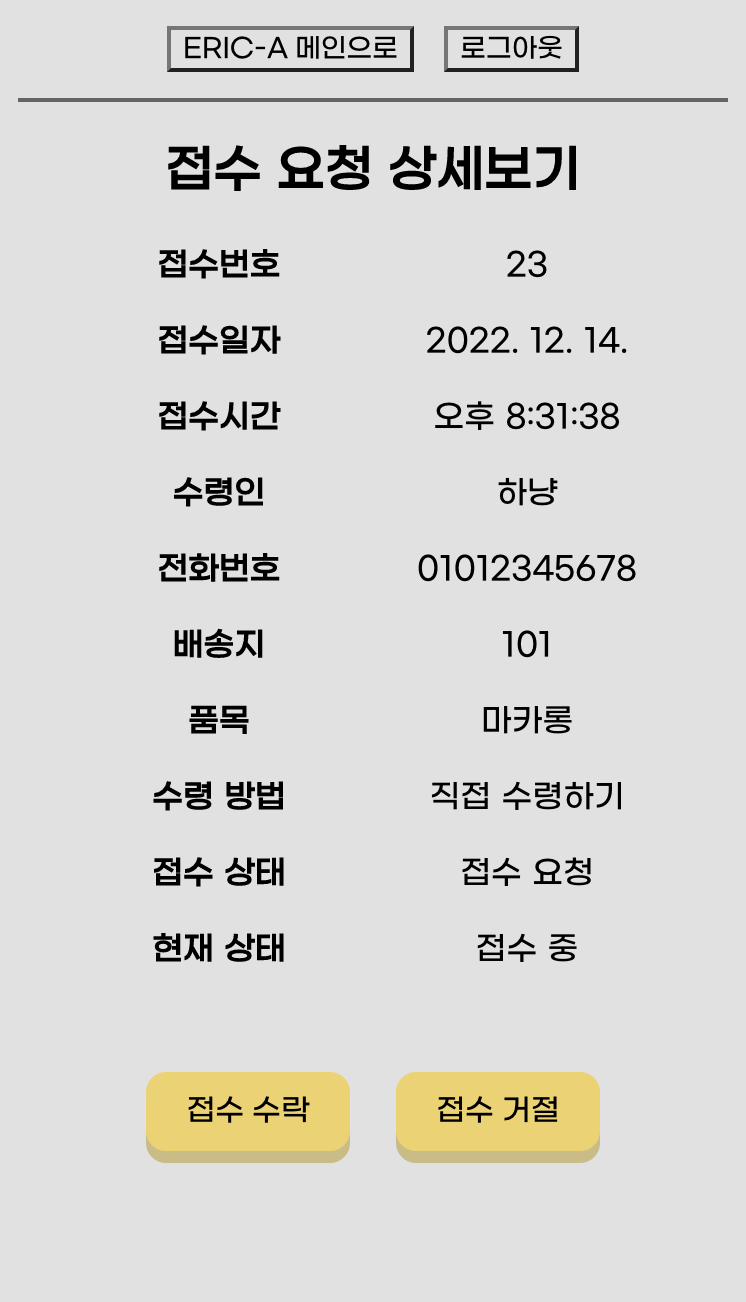

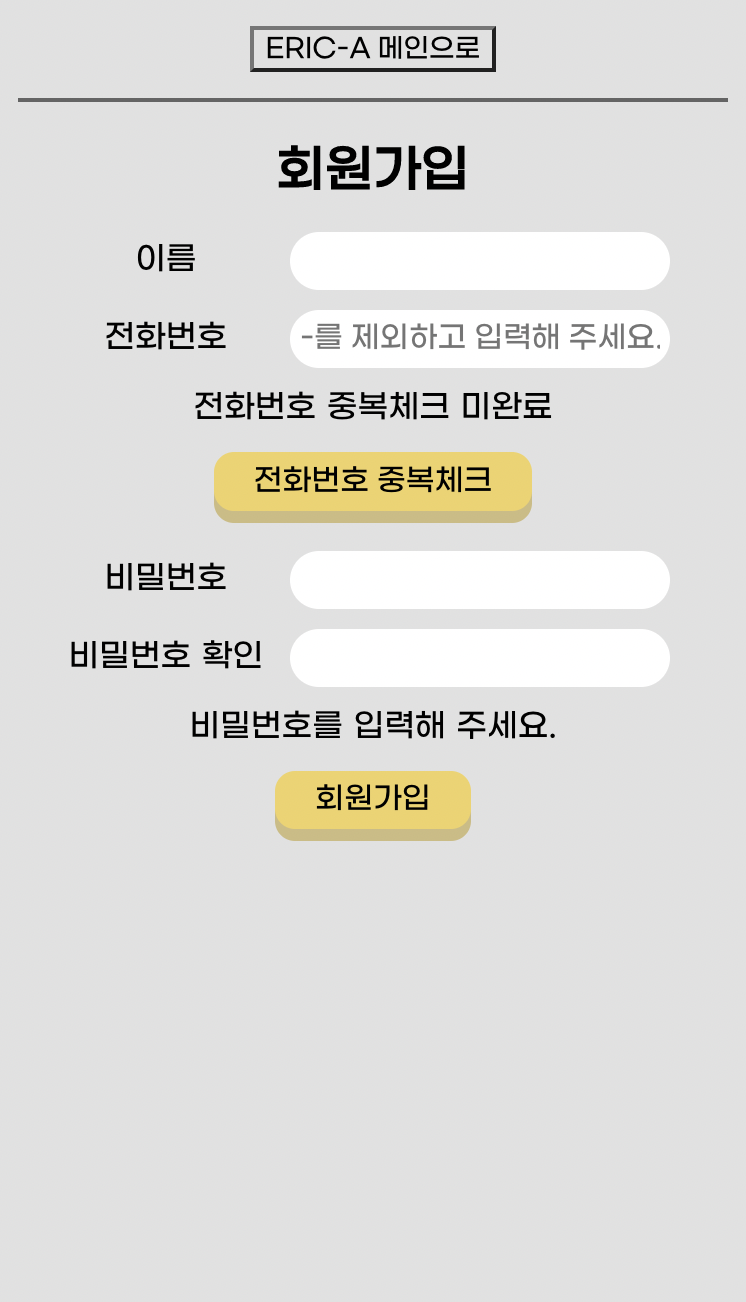

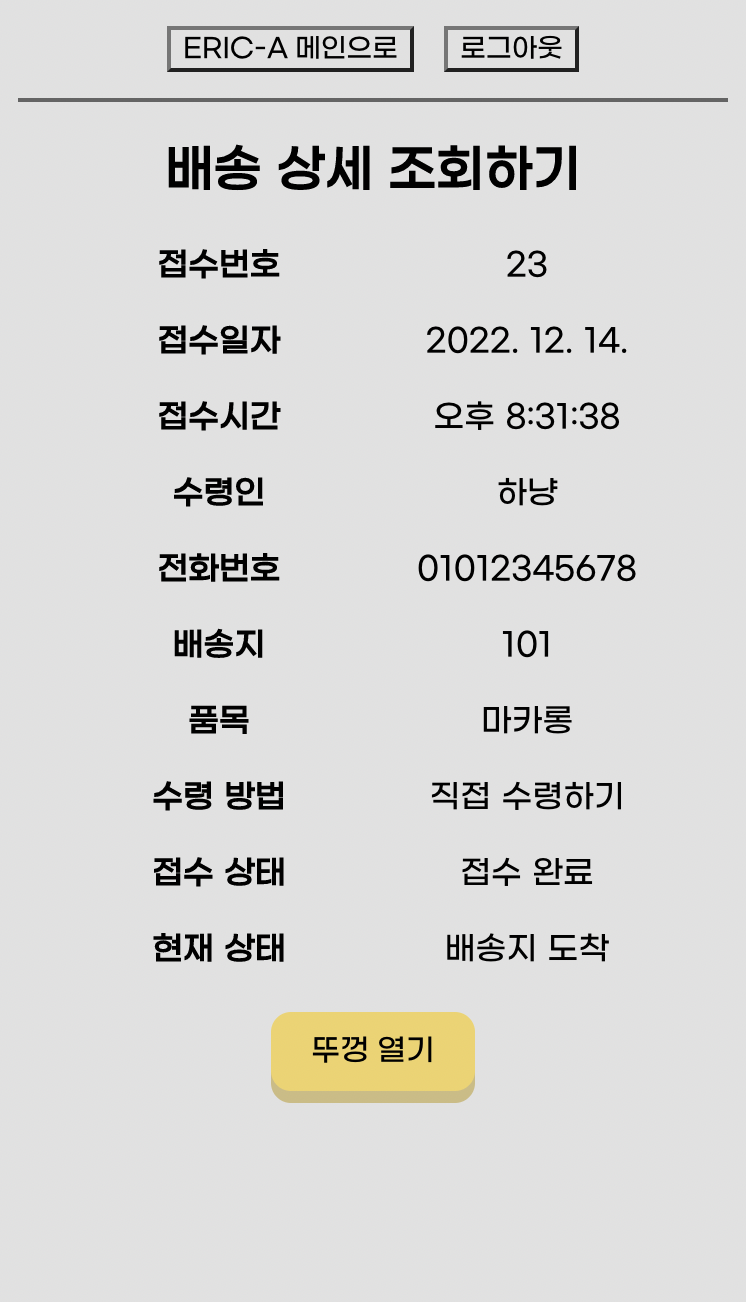

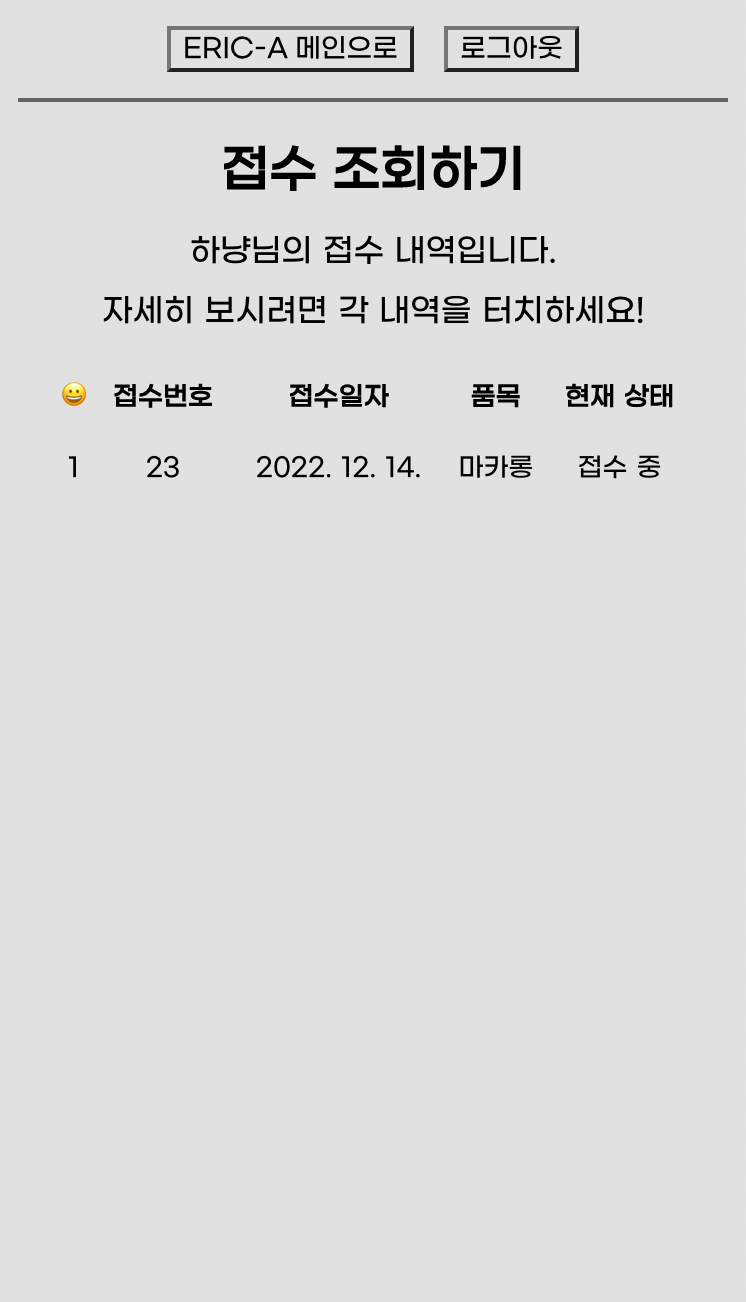

The web application connects delivery requests to robot operation. Users can place and track orders, while administrators review requests and control each delivery from pickup through completion.
